D. Structures and Mechanisms · Systems in Action

Helping Consumers Use Systems Safely and Efficiently

D2.8 A1.1 A1.5About 40 minutes

Learning goals

I can explain why consumers need information and support to use systems safely and efficiently.
I can identify sources of consumer information, such as manuals, labels, EnerGuide labels, recalls and help lines.
I can use an energy label to compare the running costs of two appliances.
I can write clear instructions for a specific audience.

Words to know

consumer
A person who buys and uses products and services.

owner's manual
A booklet or web page from the maker that explains how to set up, use, maintain and troubleshoot a product safely.

EnerGuide label
A Canadian label on many appliances that shows how much electrical energy the model uses in a year, in kilowatt-hours, compared with similar models.

ENERGY STAR
A symbol that identifies some of the most energy-efficient models of a type of product.

recall
A notice that a product has a safety problem and should be repaired, returned or no longer used.

warranty
The maker's promise to repair or replace a product if it fails within a certain time.

kilowatt-hour (kWh)
A unit of electrical energy used on electricity bills. 1 kWh = 3 600 000 J.

Hook: the snowblower and the manual

A new snowblower arrives in a big box. Inside, under the foam, is an owner's manual. Many people put the manual aside and start the machine. But the manual has the most important safety rule of all: if snow clogs the chute, turn off the engine and use the clean-out tool, never your hand. The blades can still move after the engine stops.

A system is only safe and efficient if the people using it know how to use it. That is why makers, governments and stores give consumers information and support.

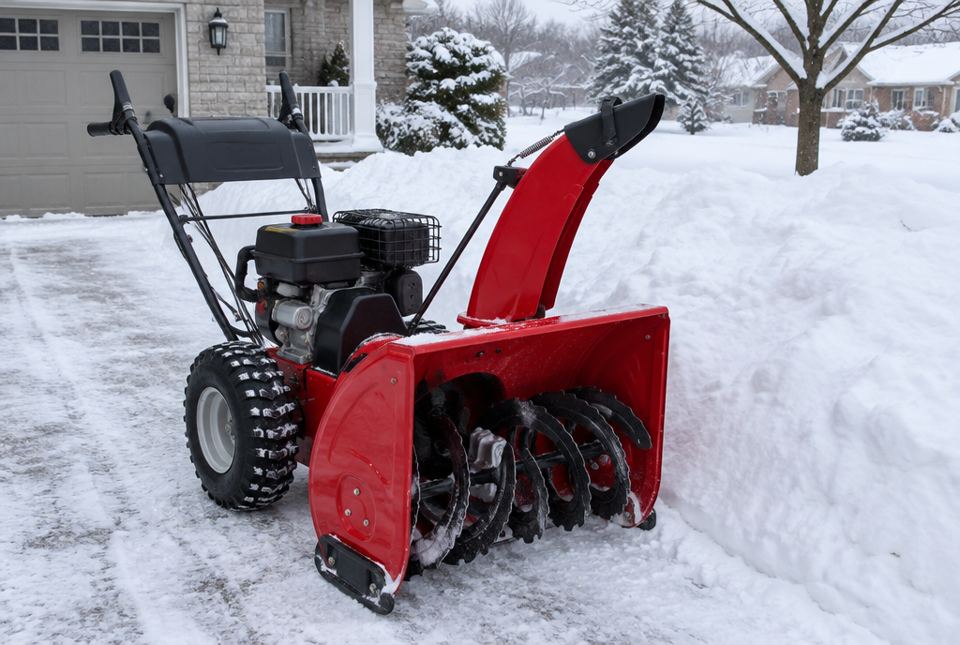

A red gas snowblower parked on a snowy driveway next to a snowbank. — The augers at the front can still move after the engine stops, which is why the owner's manual says never to clear a clogged chute by hand. AI-generated image

Why information and support matter

A well-designed system can still be used badly. People might:

use it for a job it was not designed for
skip maintenance, so it wears out or becomes unsafe
choose the wrong setting and waste energy
miss a warning about a dangerous fault

Information and support help consumers use systems safely (fewer injuries and fires) and efficiently (less wasted energy, money and materials).

Type of information or support	What it does	Example
Owner's manual and quick-start guide	explains set-up, safe use, maintenance and troubleshooting	how often to change a furnace filter
Warning labels and symbols	point out hazards right on the product	"Keep hands and feet away" on a lawn mower
EnerGuide label and ENERGY STAR symbol	help shoppers compare energy use	choosing a fridge that uses less electricity
Recalls	warn owners about a safety defect	Health Canada posts consumer product recalls; Transport Canada posts vehicle recalls
Help lines, websites and videos	answer questions and solve problems	a video showing how to install a car seat
Warranties and repair services	fix products so they last longer	free repair of a broken dishwasher within its warranty
Training and licences	teach skills before people use a risky system	the Pleasure Craft Operator Card needed to drive a motorboat in Canada

Ways consumers get information and support.

Where a consumer finds information on a new fridge. Labels on the product and the manual help people use it safely and efficiently, and the model number lets them check for recalls.

Information for social systems too

Social systems also need to inform the people who use them. A transit system posts maps, schedules and accessibility information and announces stops out loud and on screens. A school sends families its emergency procedures and snow day plans. A hospital explains how to prepare for a test. When people understand a system, it runs more smoothly for everyone.

Worked example

Let's compare two fridges using EnerGuide labels

Fridge A's EnerGuide label says 400 kWh per year. Fridge B's says 550 kWh per year. Suppose electricity costs 12 cents per kWh. How much more does Fridge B cost to run each year, and over 15 years?

Difference in energy each year: 550 − 400 = 150 kWh.
Cost difference each year: 150 × $0.12 = $18.
Over 15 years: $18 × 15 = $270.
Fridge B also uses more electricity over its life, which means more environmental impact from producing that electricity.

Fridge B costs about $18 more per year, or about $270 more over 15 years. The label lets a consumer see this before buying.

The two EnerGuide numbers from the example, as bars, at 12 cents per kWh. The gap between the bars is the extra energy Fridge B uses every year: 150 kWh, or about $270 over 15 years.

Worked example

Let's improve an instruction for a specific audience

A manual says: "Ensure periodic lubrication of the drive chain to mitigate frictional losses." Rewrite it for a Grade 4 student who is learning to look after a bike.

Find the key idea: oil the chain regularly so it runs smoothly.
Use short, familiar words and say when and how.
Add the reason, so it makes sense.

"About once a month, and after riding in rain or slush, ask an adult to help you put a drop of bike chain oil on each link. Wipe off the extra. An oiled chain is quieter, lasts longer and makes pedalling easier." (A1.5: matching your writing to the audience.)

Read the label, use the system well

Before you use a new system, find three things: the safety warnings, the right way to use it for its purpose, and the maintenance schedule. Keep manuals (or bookmark them online) and register new products so the maker can contact you about recalls.

Just for fun

A new phone comes with a 200-page manual. Page 1: "Press the power button." Pages 2 to 200: "No, the OTHER button."

Hands-on activity

Manual and label hunt

You need: an adult helper, three products from home that have manuals or labels (for example a fridge, a bike, a smoke alarm, a car seat, a space heater, a phone), a device to look things up (with an adult).

For each product, find the manual (paper or online) and any labels on the product.
Make a table: Product, one safety instruction, one efficiency tip, maintenance schedule.
Check whether any appliance has an EnerGuide label or ENERGY STAR symbol. Write down the kWh per year if it is shown.
Research (A1.1): with an adult, search Health Canada's consumer product recalls website for one product type you own (for example "children's toys" or "space heaters"). Write down what the problem was and what owners were told to do.
Pick one instruction that is hard to understand. Rewrite it for a younger child or for someone new to Canada who is still learning English.

What to look for: a completed table, an accurate summary of one recall (problem + action), and a rewritten instruction that is short, clear and keeps the safety meaning.

Your turn

Why do makers include owner's manuals with products?

What does an EnerGuide label tell a shopper?

What is a product recall?

Name two Canadian government departments that post recalls.

Why should a snowblower user never clear the chute by hand?

How does a maintenance schedule help a system run efficiently?

Give one way a transit system informs its riders.

More practice: warm-up

What symbol identifies some of the most energy-efficient models?

What unit of energy is shown on EnerGuide labels and electricity bills?

What is a warranty?

Where might you find the recommended tire pressure for a bike?

Why should you register a new product with its maker?

More practice: on your own

A dishwasher uses 270 kWh per year and another uses 330 kWh. If electricity costs $0.12 per kWh, how much would the efficient one save in 10 years?

Explain how a training course helps a social or mechanical system run safely. Use an example.

A car's "check engine" light comes on. Explain why this is a kind of consumer information and what the driver should do.

Why might a company provide free online videos instead of only a paper manual?

Rewrite this for a young child: "Do not operate the appliance with wet hands."

Challenge

A space heater label says it uses 1 500 W. Running it for 1 hour uses 1.5 kWh. If it runs 5 hours a day for 90 days of winter and electricity costs $0.12/kWh, what is the cost? What safety information should come with it?

Some people say "If a product is safe, it shouldn't need instructions." Give two reasons this is not true.

Design a one-page information sheet to help families use a new curbside green bin (food waste) program efficiently. List the four most important things it should include.

Check your understanding

Quiz

What does an EnerGuide label mainly show?

A product has a safety defect. Owners are told to stop using it and return it. This is a...

Fridge A uses 350 kWh per year and Fridge B uses 500 kWh. At $0.10 per kWh, how much more does B cost per year?

Why should you follow a product's maintenance schedule?

Which is the best instruction for a young child?

What should you do if a snowblower chute clogs?

For parents and teachers

Big idea (D2.8): Students explain how providing information and support to consumers helps to ensure that the systems they use run safely and efficiently. Examples include manuals, warning labels, EnerGuide and ENERGY STAR, recalls (Health Canada, Transport Canada), help lines, warranties and training. The fridge comparison uses an example electricity price; check your own bill for the real price where you live.

How to help: Find the manuals for your appliances together and look at the EnerGuide labels at a store. Browse Health Canada's recalls website together (A1.1, research). Ask your child to rewrite a confusing instruction for a younger sibling (A1.5, communicating for an audience).

Common difficulties:

Thinking information is only for safety. It also helps efficiency (settings, maintenance, energy labels).
kWh calculations: find the difference in kWh first, then multiply by the price.
Writing for an audience: encourage short sentences, action words first, and a reason.
